3M™ ZMS Series Sanitary T-Line Housings are designed for critical clarification and sterile filtration applications. Manufactured to strict quality standards and from high quality materials, the ZMS series filter housings meet the exacting requirements of the pharmaceutical industries.

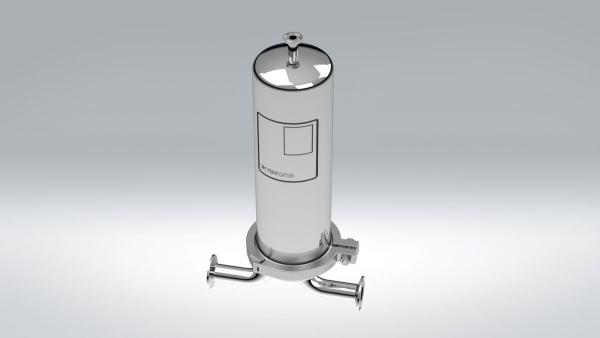

Nutzen und Einsatzmöglichkeiten von 3M™ IW Serie Gehäuse, 01IWNC1T11F3- 51801170131002
- 316L stainless steel construction that offers excellent corrosion resistance provides long term service
- Accepts code 7 style double o-ring (2-226 cartridge style) bayonet lock cartridge
- Clean-in-place (CIP) / steam-in-place (SIP) design that permits easy cleaning, sterilization or sanitization in place (in-situ)
- Designed to minimize product holdup volume and enable maximum recovery of product
- High quality surface finish (10 micro inch R internal) that helps minimize bacterial/particulate adhesion
- Housings accommodate 10", 20" or 30" filter cartridge
- Sanitary design vent and drain (optional drain valves available)
- Sanitary inline 316L Stainless Steel housings for pharmaceutical cartridge filter applications
The 316L stainless steel T-line 3M™ ZMS Series Sanitary T-Line Housings accept one code 7 style filter element (double 226 o-rings with bayonet locking tabs with a spear top) in 10" or 30" length. All ZMS series filter housings are equipped with 1/2" sanitary vent and drain ports; vent and drain valves are available as optional accessories. The ZMS series filter housing is also equipped with a 1 1/2" sanitary gauge port. The inlet and outlet connections are 1" sanitary for the ZMS series filter housing. The housings are designed for liquid or gas service and can easily be cleaned-in-place (CIP), steamed-in-place (SIP), or hot water sanitized.
3M™ ZMS Series Sanitary T-Line Housings offer the high quality electropolished surface finish for ease of cleaning. Wetted surfaces are further electropolished to a 10 micro inch Ra surface finish to help limit bacterial and particulate adhesion.
A bayonet cartridge interlock design allows easy cleaning, and a positive locking retention mechanism secures the filter cartridge even during back pressure surges. A 316L stainless steel clamp secures the housing base and dome permitting rapid filter changeouts. Each filter housing is hydrostatically tested to provide long term efficient operation even in demanding environments. All housings are supplied with silicone gaskets that comply with CFR 21 requirements for direct food and drug contact.
