Product Description

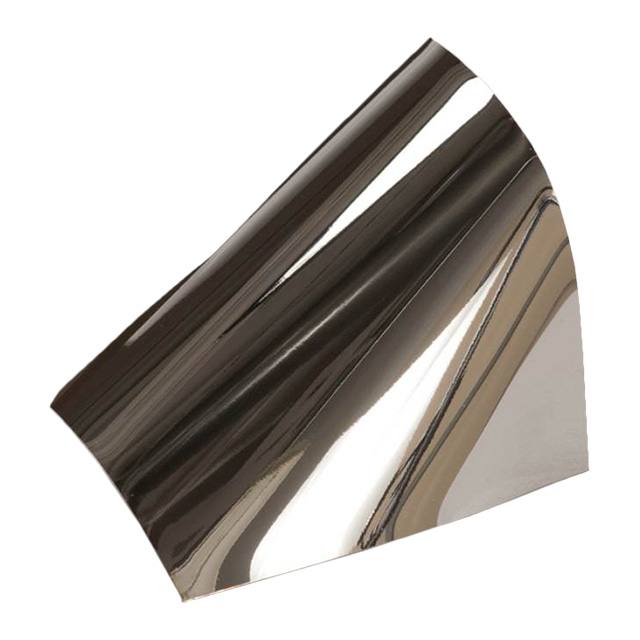

3M™ Specular Film Protected D50 (“SFP-D50” or “Product”) is the next generation of 3M's high
performance ultra-high reflectivity film, which is greater than 98.5% reflective over the full visible
spectrum and all incident angles. SFP-D50 is specially formulated to provide increased durability and
UV irradiance stability when used in high intensity LED light engines over 3M DF2000MA Specular
Film.
SFP-D50A is coated with a pressure-sensitive adhesive, and has a release liner for easy attachment.
A protective coating on the reflective use side provides abrasion resistance to allow for mild cleaning.
SFP D50F is the same as SFP D50A without the adhesive coating.
Recommended End Uses
SFP-D50 is particularly well suited as a cavity reflector for flat and conical surfaces.
Key Attributes
• Superior specular reflectivity at >98.5%
• UV and high intensity LED irradiance stability
• Nonconductive 100% polymeric film
• Available with or without adhesive
• Significantly increased lifetime in high intensity LED light engines
• Protective coating allows for mild cleaning
Product Characteristics
Typical values for SFP-D50:.
Physical Characteristics Value Test Method
Film Type Polymeric -
Liner, Adhesive Polyester -
Adhesive Pressure-sensitive -
Width 25 in. (64 cm) 3M
Thickness
(nominal)
Film (SFP-D50F) 3.3 mils (84 microns)
Film + Adhesive 3M
(SFP-D50A) 4.5 mils (114 microns)
Electrical Characteristics Value Test Method
Dielectric Strength 12.0 ± 1.0 kV ASTM D257/
D149
