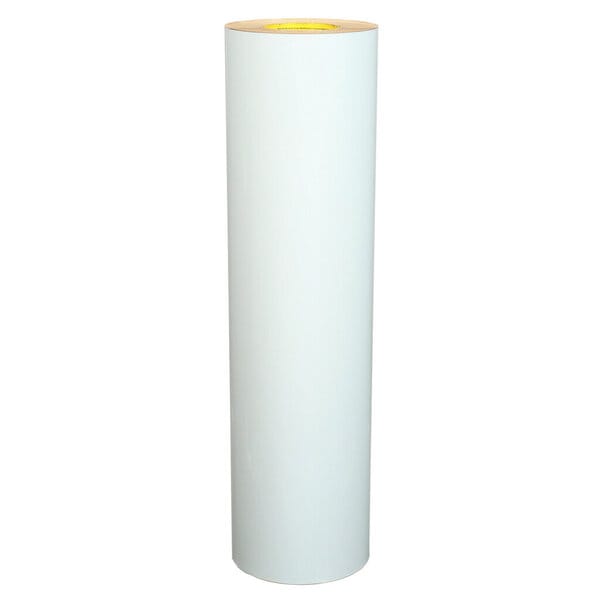

3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WM is an all-weather option for various jacketing applications. It offers superior resistance to weathering, mold, UV and extreme environmental conditions and meets the FDA compositional requirements for indirect food contact. This white aluminum multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier.
Zero Permeability Cladding and Jacketing
The white aluminum exterior provides an attractive aesthetic for cladding that is visible when finished while also providing excellent chemical resistance. It provides zero permeability and acts as a vapor barrier for insulation cladding and jacketing applications. This tape was tested in accordance with ASTM E84. The self-adhesive material cuts and installs easily on-site and without the use of special tools. The backing is flexible to conform to curved and irregular surfaces with ease. 3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WM meets or exceeds most building code requirements – for more information on specific approvals, please refer to the technical data sheet.
Adheres in Cold Temperatures
3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WM features an aggressive pressure sensitive acrylic adhesive that bonds and seals well in cold temperatures. This adhesive adheres immediately on contact to a variety of materials such as fiberglass, faced fiberglass insulation, mineral wool, polystyrene and flexible aerogel. It applies easily at temperatures as cold as -10°F/-23°C. It can operate at a service temperature as low as -94°F/-70°C and as high as 300°F/149°C. Once bonded, this tape will provide good holding power for extended periods with good aging properties and resists lifting and curling over time.
This product is used to protect insulation against UV, ozone, high humidity, salt spray, weather, oil and grease, aggressive chemicals, impact and mechanical abuse, corrosion under insulation (CUI), and moisture vapor intrusion. It works well with many insulation types. Qualifies for compliance credit for LEED®. Additionally, it meets the FDA compositional requirements for indirect food contact.
Recommended Applications
- Vapor barrier for insulation cladding and jacketing operations such as HVAC ductwork and piping
- Interior and exterior ductwork (rectangular/round), pipes (straight runs, bends, intersections), and vessels
- Weather protection system in extreme environmental conditions
The Science of Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our industrial tapes and adhesives, like 3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WM, to help businesses like yours operate faster, better and more efficiently.
This product does not exceed the maximum concentration values (MCVs) for phthalates set under EU Directive 2011/65/EU (RoHS recast/RoHS 2), as amended by EU 2015/863, which applies to finished EEE after July 22, 2019 for Category 1-7, 10-11 products and after July 22, 2021 for Category 8 and 9 products. This means that each of the homogeneous materials within this product does not exceed the MCV of 0.1% (by weight) for each of the following phthalates: DEHP, BBP, DBP, and DIBP.
