3M™ Zeta Plus™ Encapsulated System Filter Capsule with LA Series Media is available in single dual layer depth filters. Our LA media is composed of pre-extracted inorganic filter aid, cellulose and a positively charged resin system that pulls negatively charged contaminants from the fluid.
Nutzen und Einsatzmöglichkeiten von "3M™ Zeta Plus™ Encapsulated System Filter Capsule with LA Series Media, E16E11A50LA, 1 cell, 16 in"
- FDA Drug Master File (DMF) and USP Class VI Reactivity compliance eases validation and regulatory submission by providing vital documentation and traceability.
- Filter media retains contaminants by mechanical entrapment and electrokinetic adsorption.
- Full range of scalable capsule and cartridge filter configurations allow pilot testing and scale-up using the same materials as in full-scale systems.
- High contaminant holding capacity provides economical filtration and reliable particle reduction.
- Low hold-up volume for minimal fluid loss.
- Pre-extracted inorganic filter aid.
- Solid core design with fully encapsulated shell eliminates the need for a stainless steel housing and post-filtration cleaning validation.

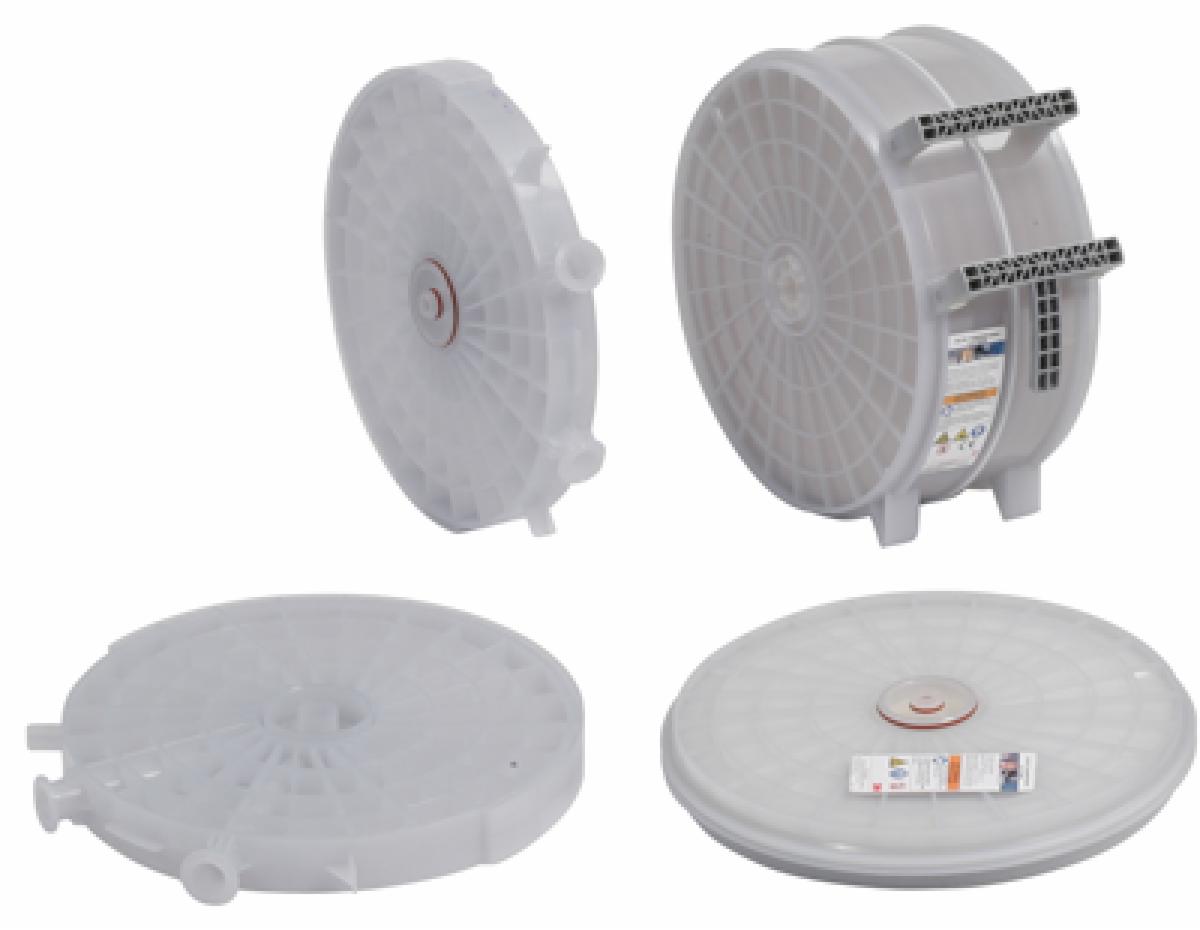

3M™ Zeta Plus™ Encapsulated System Filter Capsule with LA Series Media is used for clarification of bioprocess, biological and pharmaceutical fluids. Our LA media has a positive charge to provide higher reduction of negatively charged contaminants compared to a mechanical filtration mechanism alone. Pharmaceutical Grade Media 3M Zeta Plus Encapsulated System Capsules, with LA Series Media are manufactured to controls described in our Drug Master File on record with the FDA. Certificates of Quality are included with every filter. These filters meet the requirements of USP Class VI Biological Reactivity Tests and meet the strict requirements specified in the Drug Master File, including product control and traceability. Encapsulating High Performance Scale-up capsules are available in three sizes to meet varying volumes and applications and the capsules have been designed for minimal hold-up volume. The production capsule manifolds have 1.5" sanitary connections on the inlet and outlet. 3M Zeta Plus Production capsules may be used in a multi-stage filtration or purification train with a single 3M Encapsulated System holder. One of the stages may include 3M™ Emphaze™ products. A pair of manifolds is required between each stage of the multi-stage train within the 3M Encapsulated System holder. Combined with the larger production scale capsules, 3M Zeta Plus Encapsulated System offers a completely single-use depth filter solution to process from 100 ml to 25,000 L of liquid.
Inhalt pro Verpackung
Haftungsausschluss für den bestimmungsgemäßen Gebrauch
For industrial/occupational use only. Not for consumer sale or use.
