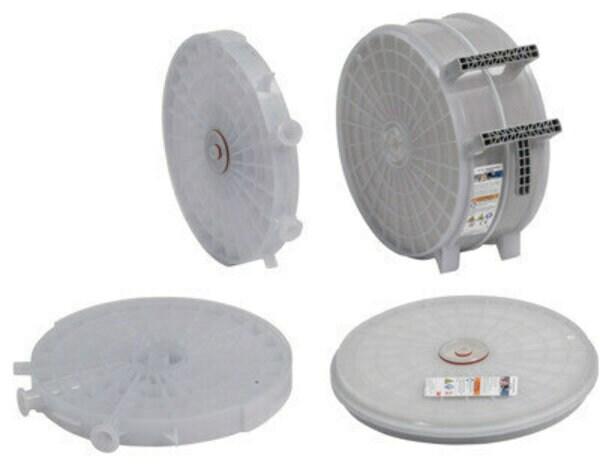

3M™ Zeta Plus™ Encapsulated System Filter Capsule with SP Series Media is our single layer or EXT double layer depth filter composed of inorganic filter aid, cellulose and a positively charged resin system that pulls negatively charged contaminants from the fluid.
Nutzen und Einsatzmöglichkeiten von 3M™ Zeta Plus™ Encapsulated System Filter Capsule with SP Series Media, E16R07A60SP03A, 16 in, 7 cell, 1 Each/Case
- FDA Drug Master File (DMF) and USP Class VI Reactivity compliance eases validation and regulatory submission by providing vital documentation and traceability.
- Filter media retains contaminants by mechanical entrapment and electrokinetic adsorption.
- Full range of scalable capsule and cartridge filter configurations allow pilot testing and scale-up using the same materials as in full-scale systems.
- High contaminant holding capacity provides economical filtration and reliable particle reduction.
- Solid core design with fully encapsulated shell eliminates the need for a stainless steel housing and post-filtration cleaning validation.
3M™ Zeta Plus™ Encapsulated System Filter Capsule with SP Series Media for economical small scale clarification of bioprocess, biological and pharmaceutical fluids.Our SP Series Media has a small positive charge that pulls out more negatively charged contaminants compared to a mechanical filtration mechanism alone.Pharmaceutical Grade Media3M Zeta Plus Encapsulated System Filter Capsule with SP Series Media is manufactured to controls described in 3M’s Drug Master File on record with the FDA. Certificates of Quality are included with every filter. These filters meet the requirements of USP Class VI Biological Reactivity Tests and meet the strict requirements specified in the Drug Master File, including product control and traceability. Encapsulating High Performance A range of scaling devices are available. Scale-Up Capsules are available in three sizes to meet varying volumes and applications and have been designed for minimal hold-up volume. The production capsule manifolds have 1.5" sanitary connections on the inlet and outlet. 3M Zeta Plus Production capsules may be used in a multi-stage filtration or purification train with a single 3M Encapsulated System holder. One of the stages may include 3M™ Emphaze™ products. A pair of manifolds is required between each stage of the multi-stage train within the 3M Encapsulated System holder.Combined with the larger production scale capsules, 3M Zeta Plus Encapsulated System offers a completely single-use depth filter solution to process from 100 ml to 25,000 L of liquid.
